正四面體


TetrahedronSolidWireframeNet

製作你自己的正四面體

列印 & 摺疊
3D 列印

正四面體,通常簡稱為“四面體”,是擁有四個多面體頂點、六條多面體邊和四個等邊三角形面的柏拉圖立體4{3}。上圖展示了正四面體及其線框版本和一個可用於其構造的網格

正四面體也是均勻多面體,其 Maeder 指數為 1 (Maeder 1997),Wenninger 指數為 1 (Wenninger 1989),Coxeter 指數為 15 (Coxeteret al. 1954),Har'El 指數為 6 (Har'El 1993)。它由施萊夫利符號 {3,3} 描述,Wythoff 符號3|23。它是一個等面體,是通用四面體等腰四面體的一個特例。

TetrahedronProjections

上面展示了正四面體的若干對稱投影。

正四面體在 Wolfram 語言中實現為Tetrahedron[] 或UniformPolyhedron["Tetrahedron"]。預計算屬性可作為PolyhedronData["Tetrahedron", prop]。

四面體有 7 個對稱軸:4C_3(連線頂點與對面中心軸)和 3C_2(連線相對邊中點的軸)。

除了四面體之外,沒有其他凸多面體具有四個面。

TetrahedronNets

四面體有兩個不同的網格(Buekenhout 和 Parker 1998)。可以使用波利亞計數定理解決四面體的多面體著色問題。

四面體的表面積是單個等邊三角形面面積的四倍

 A=1/4sqrt(3)a^2,
(1)

因此

 S=4A=sqrt(3)a^2.
(2)

正四面體的高度是

 h=1/3sqrt(6)a
(3)

內半徑和外半徑是

r=1/(12)sqrt(6)a
(4)
R=1/4sqrt(6)a,
(5)

其中 h=r+R 必然如此。

由於四面體是以三角形為底的金字塔V=1/3A_bh,得出

 V=1/(12)sqrt(2)a^3.
(6)

二面角

 alpha=tan^(-1)(2sqrt(2))=2sin^(-1)(1/3sqrt(3))=cos^(-1)(1/3) approx 70.53 degrees
(7)

單位正四面體的Dehn 不變數

D=-12<3>_2
(8)
=-12tan^(-1)(sqrt(2))
(9)
=-11.46379...
(10)

(OEIS A377277),其中第一個表示式使用 Conwayet al. (1999) 的基。

從正四面體的頂點到對面所張的立體角 Omega 由下式給出

Omega=(Delta_i)/(R^2)=3cos^(-1)(1/3)-pi
(11)
=cos^(-1)((23)/(27)),
(12)

或大約 0.55129 球面度

四面體的中半徑

rho=sqrt(r^2+d^2)=sqrt(1/8)a=1/4sqrt(2)a
(13)
 approx 0.35355a.
(14)

代入多面體頂點得到

 (1/3sqrt(3)a,0,0),(-1/6sqrt(3)a,+/-1/2a,0), and (0,0,1/3sqrt(6)a).
(15)
TetrahedronAndDual

如上圖所示,單位邊長四面體的對偶多面體是另一個方向相反的單位邊長四面體。

Origami tetrahedron

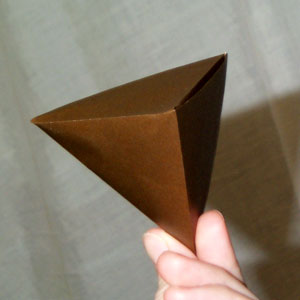

上圖顯示了用一張紙摺疊而成的摺紙四面體(Kasahara 和 Takahama 1987,第 56-57 頁)。

TetrahedralGraph
TetrahedralCirculantGraph

它是四面體群 T_d 的原型。頂點的連通性由四面體圖給出,等價於迴圈圖 Ci_(1,2,3)(4)完全圖 K_4

tettet

四面體是其自身的對偶多面體,因此四面體的面的中心形成另一個四面體(Steinhaus 1999,第 201 頁)。四面體是唯一沒有多面體對角線的簡單多面體,並且不能進行星形化。如果一個正四面體被六個平面切割,每個平面都穿過一條邊並平分相對的邊,它將被切成 24 塊(Gardner 1984,第 190 和 192 頁;Langman 1951)。

亞歷山大·格拉漢姆·貝爾是使用四面體框架結構(包括風箏)的支持者(Bell 1903;Lesage 1956,Gardner 1984,第 184-185 頁)。正四面體的相對邊是垂直的,因此如果鉸接得當,可以形成萬向聯軸器。八個正四面體可以放置在一個自由旋轉的環中,對於擠壓的不規則四面體,數量可以減少到六個(Wells 1975, 1991)。

TetrahedronLengths

設一個四面體的邊長為 a,並使其底面位於 z=0 平面內,其中一個頂點沿正 x-軸。則此四面體的多面體頂點位於 (x, 0, 0)、(-d, +/-a/2, 0) 和 (0, 0, h),其中

 x=(a/2)/(cos(pi/6))=1/3sqrt(3)a.
(16)

d 然後是

 d=sqrt(x^2-(1/2a)^2)=1/6sqrt(3)a.
(17)

這給出了底面的面積

 A=1/2a(R+x)=1/4sqrt(3)a^2.
(18)

高度是

 h=sqrt(a^2-x^2)=1/3sqrt(6)a.
(19)

外半徑 R 由下式求得

 x^2+(h-R)^2=R^2
(20)
 x^2+h^2-2hR+R^2=R^2.
(21)

解得

R=(x^2+h^2)/(2h)
(22)
=1/4sqrt(6)a
(23)
 approx 0.61237a.
(24)

內半徑 r

r=h-R=1/(12)sqrt(6)a
(25)
 approx 0.20412a,
(26)

也就是

r=1/4h
(27)
=1/3R.
(28)

底面和中心之間的角度由此給出

phi=tan^(-1)(r/x)
(29)
=tan^(-1)(1/4sqrt(2))
(30)
=cot^(-1)(2sqrt(2))
(31)
 approx 19.47 degrees.
(32)

給定一個邊長為 a 的四面體,其頂點垂直,座標系原點位於頂點的幾何質心處,則四個多面體頂點位於 (x,0,-r)(-d,+/-a/2,-r)(0,0,R),如上所示

x=1/3sqrt(3)a
(33)
r=1/(12)sqrt(6)a
(34)
R=1/4sqrt(6)a
(35)
d=1/6sqrt(3)a.
(36)
TetrahedronCube
TetrahedronInequality

當頂點取為立方體的角時,邊長為 sqrt(2) 的四面體的頂點也可以用特別簡單的形式給出(Gardner 1984,第 192-194 頁)。邊長為 1 的立方體的一個這樣的四面體給出了邊長為 sqrt(2) 的四面體,其頂點為 (0, 0, 0)、(0, 1, 1)、(1, 0, 1)、(1, 1, 0),並滿足不等式

x+y+z<=2
(37)
x-y-z<=0
(38)
-x+y-z<=0
(39)
-x-y+z<=0.
(40)

下表給出了可以透過給定高度 h 的金字塔對四面體進行增廣構造的多面體。

ThreadedTetrahedron

用等間距的線連線相對的邊對,得到如上圖所示的配置,該配置將四面體分成八個區域:四個開放區域和四個封閉區域(Steinhaus 1999,第 246 頁)。

密歇根州藝術家大衛·巴爾於 1976 年設計了他的“四角專案”。這是一個地球大小的正四面體,跨越整個地球,只有四個角的尖端突出。這些可見部分是四英寸的四面體,從地球突出,位於復活節島、格陵蘭島、新幾內亞和卡拉哈里沙漠。巴爾前往這些地點,並在 1981 年至 1985 年間永久安裝了四個對齊的大理石四面體(G. Hart, pers. comm.; Arlinghaus 和 Nystuen 1986)。

TetrahedronSquare1
TetrahedronSquare2

透過如上所示切割四面體,可以得到一個正方形。這種切割將四面體分成兩個全等的實體,旋轉了 90 degrees。四面體的投影可以是等邊三角形正方形(Steinhaus 1999,第 191-192 頁)。


另請參閱

增廣截角四面體, Bang 定理, 立方體四面體拾取, Ehrhart 多項式, 海倫四面體, 希爾伯特第三問題, 等腰四面體, 五胞體, 柏拉圖立體, 多面體著色, 勒洛四面體, 球體四面體拾取, 星形八面體, 相切球, 切四面體, 四面體, 四面體 4-複合體, 四面體 5-複合體, 四面體 6-複合體, 四面體 10-複合體, 俄羅斯方塊, 直角四面體, 截角四面體

本條目部分內容由 Frank Jackson 貢獻
